Pomona
Pomona

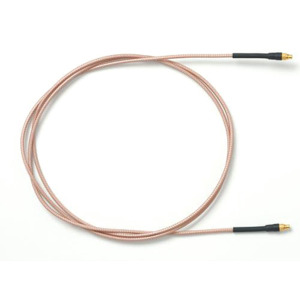

Pomona 73077-UU-48 MMCX Plug To MMCX Plug, 50 Ohms, DC - 3GHz, Brass, Gold Plated, PTFE

Our Part #34876.1

Mfr Part #73077-UU-48

Pomona 73077-UU-48
Pomona
Pomona

Pomona 73077-UU-48 MMCX Plug To MMCX Plug, 50 Ohms, DC - 3GHz, Brass, Gold Plated, PTFE

Our Part #34876.1

Condition:New

Mfr Part #73077-UU-48

$37.99EACH
  • DC - 3GHz bandwidth.
  • Connectors allow rotation of 360° for layout flexibility.
  • Non-slotted contact design for low RF leakage.
  • Perfect for applications where space, weight, performance and ease of assembly are required.

BrandPomona
Cable Diameter0.071"
Cable Length48"
Cable TypeRG178B/U
Contact FinishGold Plated
Contact MaterialPhosphor Bronze
FinishGold Plated
Frequency3 GHz
Impedance50 Ω
Insulation MaterialPTFE
Insulation Resistance Range500 MΩ
Jacket MaterialFEP
MaterialBrass
Operating Temperature Range-67-311°F
Withstanding Voltage500 V
$37.99EACH
