Pomona

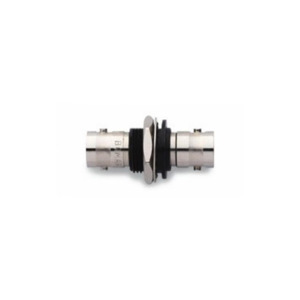

Pomona 6705 BNC (F/F) Isolated Panel Connector For Digital Video, 75 Ohms, Brass
Our Part #35133.1
Mfr Part #6705
Pomona
Pomona 6705 BNC (F/F) Isolated Panel Connector For Digital Video, 75 Ohms, Brass
Our Part #35133.1
Condition:New
Mfr Part #6705
$EACH
- Description
- Specifications
- Documents
- True 75 ohm impedance.
- Designed to meet the rigid standards for HDTV.
- Panel isolated with black nickel plating for easily identification as anHDTV connector.
- Connectors are precision machined (not die-cast) from brass.
- Insulator material is high density PTFE to maintain a perfect dielectric constant.
- Connectors utilize gold plated contact pin to maintain low return loss in high definition applications.
Brand:Â Pomona
Finish:Â Nickel Plated
Frequency Range:Â 0-3 GHz
Impedance: 75 Ω
Input VSWR:Â 1.3
Insulation:Â Polytetrafluorethylene
Insulation Resistance Range: 5000 MΩ
Material:Â Brass
Temperature Range: -40-85°C
