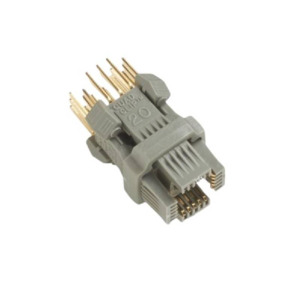

Pomona 5279 PLCC Clip, 20 Pins, 5x5, 500 V, 1 A, Gray
Our Part #35233.1
Mfr Part #5279
Pomona
Pomona 5279 PLCC Clip, 20 Pins, 5x5, 500 V, 1 A, Gray
Our Part #35233.1
Condition:New
Mfr Part #5279
$46.00EACH
Condition:New
- Description
- Specifications
- Documents
- Test adapters are designed for testing surface-mounted PLCC chips with "J" leads (JEDEC MO047 and MO-052).
- The patented lock-on design attaches directly to the surface-mounted
- IC and provides hands-free access to all of the chip leads.
- Gold-plated upper contacts assure noise-free, low-resistance connections.
- Standard .025 square pins accept wire-wrap, .025 sq. receptacle, or soldered wires.
- Pins are staggered to use the least space
- Gold-plated lower contacts assure the best connection to chip leads.
Brand: Pomona
Color: Gray
Contact Finish: Gold Plated
Contact Material: Beryllium Copper/Phosphor Bronze
Current: 1 A
Insulation Material: Glass filled Nylon
Maximum Temperature: 215°F
Voltage Rating: 500 V
