Pomona

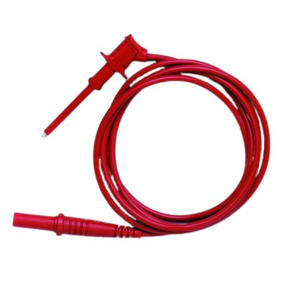

Pomona 6245-48-2 Minigrabber Test Clip To Banana Plug, 48" Long, 5 A, 300 V, Red, 6245 Series
Our Part #35729.1
Mfr Part #6245-48-2
Pomona
Pomona 6245-48-2 Minigrabber Test Clip To Banana Plug, 48" Long, 5 A, 300 V, Red, 6245 Series
Our Part #35729.1
Condition:New
Mfr Part #6245-48-2
$15.99EACH
- Description
- Specifications
- Documents
- Newly designed Minigrabber® Test Clip Patch Cord complies with IEC 61010-2-31, which is the latest international safety standard for test accessories.
- Grabber width is a slim .36” (9,14 mm) for easier side by side stacking.
- Grabber hook is gold plated Beryllium Copper to ensure signal integrity.
- Grabber hook attaches onto component leads up to .060” (1,5 mm) O.D.
- Grabber patch cord interfaces directly into the most popular multimeters configured with 4 mm sheathed safety jacks including Amprobe, Fluke, H.P., Tektronix and Wavetek.
- Plug is molded directly to the cable in an integral one-piece design and the wire is double crimped for a long lasting connection.
- Multi-leaf banana spring material is nickel plated Beryllium Copper for extended insertion life and low contact resistance.
- High strand count silicone insulated wire offers excellent flexibility and high temperature resistance.
Brand: Pomona
Series: 6245 Series
Cable Length: 48"
Color: Red
Current: 5 A
Finish: Nickel Plated
Insulation Material: Polypropylene
Material: Polypropylene
Safety Rating: CAT 2
Voltage Rating: 300 V
Wire Material: Silicone
Wire Size: 18 AWG
$15.99EACH
