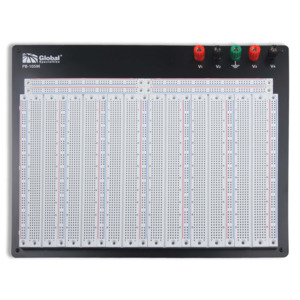

Global Specialties PB-105M Externally Powered Breadboard

Features and Specifications

• Comes fully assembled
• 4560 Tie-Point
• 5 Binding posts
• 19 mm standard spaced binding posts
• Nickel plated phosphor bronze spring clip contacts
• Fits 0.4-0.7 mm wire diameter
• Fits 42 total 16-pin ICs
• Maximum current capacity of 1.5 A at 36 V
• Measures 30.5 x 24 x 2.7 cm

The PB-105M Externally Powered Solderless Breadboard is a tool for prototyping low frequency or DC powered circuits. It has 4560 tie-points, 4 binding posts, and no soldering required. You can connect it to an external power source and fit 28 total 16-pin ICs and other components. The square hole style and the nickel plated phosphor bronze spring clip contacts ensure a secure and stable connection. The breadboard also has an ABS plastic body, an aluminum back plate, rubber feet, and a maximum current capacity of 1.5 A at 36 V. It is RoHS compliant. Whether you are a hobbyist, a student, or a professional, the PB-105M Externally Powered Solderless Breadboard is a great tool for your circuit design and testing needs.
