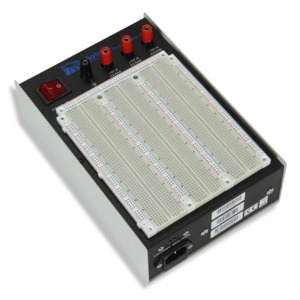

Global Specialties PB-203A Powered Breadboard

Features and Specifications

• Combines utility of a Proto-Board with highly capable regulated DC power supplies
• Housed in a rugged metal case
• Triple output power supply, 5V at 1A, +15V and -15V at 500mA
• Up to (24) 14-pin DIP IC capacity
• Input power source 110/120VAC at 60Hz, or 210-220VAC at 50Hz
• Dimensions 9.8 x 6.6 x3.3 in (249 x 167 x 86.7 mm)

The PB-203A is a powered breadboard that can be used for various analog, digital, logic and microcomputer circuit designs. It has its own power supply, so you don't need an external one. This makes it more flexible and saves space on your bench. The PB-203A has a large breadboarding area that can accommodate almost any kind of circuit, from TTL, CMOS and ECL, to opamps, audio, comparators, video amps, microprocessor components, phase locks and more.

What's in the Box

• Proto-Board with on-board power supply
• Three new GS-830, 830 Tie-point Solderless Breadboards
• One new GS-080, 80 Tie-point Bus Strip
