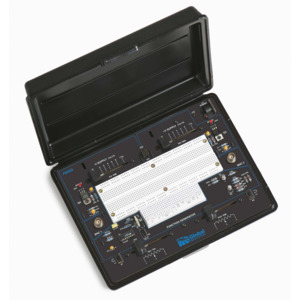

Global Specialties PB-500 Portable Analog Circuit Trainer

Features and Specifications

• Built-in Function Generator:
  • Factory set to 1 kHz / 0.1 Hz to 100 kHz (variable)
  • Amplitudes (Typical)
  • Sine: 4 Vpp, 10 kilohm load
  • Triangle: 9 Vpp, 10 kilohm load
  • Square: 8 Vpp, 10 kilohm load
• Fixed Quad output DC power supply:
  • Fixed: +/-12 VDC at 200 mA +/- 5%
  • Variable: 0 to +/-7.5 VDC at 50 mA +/-10%
• Premium breadboarding area with 8 power rails:
  • 840 tie points with (8) 25-pin power rails
  • Accommodates up to 8 (14-pin) ICs
• Audio experimentation speaker
• Optional courseware available

The PB-500 is a small and easy-to-carry trainer for analog circuit design, with its own power supply and function generator. It can be used both for teaching and designing analog circuits. The PB-500 has a unique mix of built-in functions and flexible devices, making it very convenient for breadboarding. The trainer has all the functions needed to study and experiment with active filters, operational amplifiers and other analog circuits, and it runs on a wall-mount power adapter that is UL approved. By using the PB-500, students will acquire useful skills in breadboarding and gain a strong background in circuit testing, building and analysis.

The PB-500 is also a valuable, capable and reliable tool for experienced designers, who can use it for the most complex and challenging analog design projects.

What's in the Box

• PB-500 Portable Analog Circuit Trainer
• Wall adapter
• Power cord
• User manual
