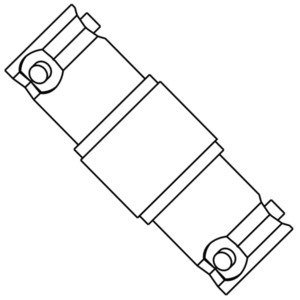

3-SLOT 1100V TRIAX FEMALE TO FEMALE BARREL INTERCONNECT

• 3-lug female-barrel adapter rated for 1100 V
• The two female connectors of this adapter will only mate with 3-slot male triaxial connectors (Keithley part number TRX-1100V-CONN) and cables (Keithley part number TRX-1100V-*)
• This connector can be used in applications that use the Keithley Instruments Model 2470 High Voltage SourceMeter Instrument
• Intended for instrument testing that requires high voltage and high throughput combined with DC measurement capability and broad testing flexibility
• Voltage rating: Center contact to inner shield: 707 V dc; Center contact and inner shield to outer shell: 1500 V dc
• Materials: Brass with nickel plated body, Beryllium copper with gold and nickel-plated center conductor, Brass with gold and nickel-plated inner shield, Teflon insulators
• Contact resistance: Center contact: 2.0 mΩ; Inner shield: 1.0 mΩ; Outer shell: 0.5 mΩ
• Insulation resistance (measured using an electrometer with the alternating polarity method at 500 V with a one–minute delay): Center to guard: 1 x 1014 Ω; Guard to shell: 1

The Keithley Instruments TRX-1100V-FFBARREL is a 3-lug female-barrel adapter rated for 1100 V. The two female connectors of this adapter will only mate with 3-slot male triaxial connectors (Keithley part number TRX-1100V-CONN) and cables (Keithley part number TRX-1100V-*) that meet the safety standards for spacing.

This connector can be used in applications that use the Keithley Instruments Model 2470 High Voltage SourceMeter Instrument. It is intended for instrument testing that requires high voltage and high throughput combined with DC measurement capability and broad testing flexibility.
