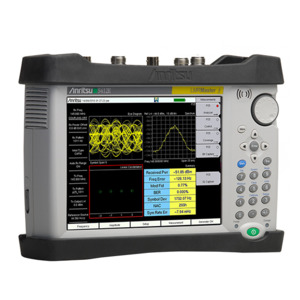

Anritsu S412E LMR Master Land Mobile Radio Modulation Analyzer with GPS Receiver Option 0031 - Requires GPS Antenna Sold Separately

500 kHz to 1.6 GHz (optional to 6 GHz) Handheld, battery-operated design Weighs less than 7.6 lbs. (including battery) Built-in worldwide signal standards and frequency channels TFT color daylight viewable color display Superior Immunity to RF interference Excellent Noise floor of -152 dBM

The LMR Master S412E is a compact handheld multi-function analyzer that has been specifically developed for technicians and engineers who install and maintain public safety, utility and private mobile communications systems. The S412E combines our industry-standard cable & antenna analysis with the unmatched performance of our spectrum analyzers, then adds in powerful signal analysis and generation capabilities - including coverage mapping tools for both outdoor and indoor performance analysis - to create the ultimate battery powered LMR field service instrument for system commissioning, preventative maintenance, troubleshooting and compliance testing of mission critical systems.

Land Mobile Radio Analyzer Highlights

• NBFM Mode analyzes Carrier Frequency, Carrier Power, Deviation, CTCSS/DCS/DTMF, Occupied Bandwidth
• NBFM Auto Scan locates and locks on to transmitter carriers
• SINAD and 20 dB Quieting analysis modes
• Optional Digital LMR analysis modes for P25, NXDN, DMR2, PTC
• Coverage Mapping (Outdoor and Indoor) for NBFM and Digital LMR
• Analysis of data and BER on P25, NXDN, and DMR2 control channels
• Signal Generator: 500 kHz to 1.6 GHz, 0 dBm to –120 dBm
• P25, NXDN, and DMR2 modes offer standard BER test patterns including 1011 Hz, 1031 Hz, and O.153/V.52

Vector Network Analyzer Highlights

• 1-path, 2-port VNA w/ quad trace display
• Distance Domain option for Distance-to-Fault analysis
• Adjustable data points up to 4001
• IF Bandwidth selections of 10 Hz to 100 kHz
• Optional 6 GHz Frequency Coverage
• 100 dB transmission dynamic range to 4 GHz
• 850 μs/data point sweep speed
• Vector Voltmeter option for matching section and phasing harness construction

Spectrum Analyzer Highlights

• Dynamic Range: > 95 dB in 10 Hz RBW
• DANL: –152 dBm in 10 Hz RBW
• Phase Noise: -100 dBc/Hz max @ 10 kHz offset at 1 GHz
• Frequency Accuracy: < ± 50 ppb with GPS On
• Optional 6 GHz Frequency Coverage
• Options: Interference Analyzer, Spectrogram, Channel Scanner

The S412E LMR Master includes data analysis software, soft carrying case, rechargeable/field-replaceable battery, AC/DC power supply, 12V automobile cigarette lighter adapter and a comprehensive user's guide.

In The Box

• 2000-1691-R Stylus with Coiled Tether
• 2000-1797-R Screen Protector Film, 8.4 inch (2, one installed)
• 2000-1654-R Soft Carrying Case
• 633-75 Rechargeable 7500mAh Li-Ion Battery
• 40-187-R AC-DC Adapter
• 806-141-R Automotive Power Adapter, 12VDC, 60W
• 3-2000-1498 USB A-type to Mini USB B-type cable, 3.05m (10ft)
• Standard ThreeYear Warranty (one year on battery)
• Certificate of Conformance
