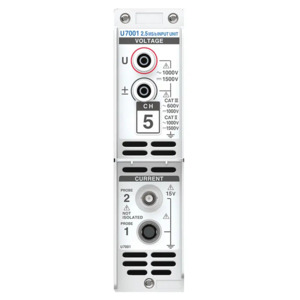

Hioki U7001 Input Unit

• Factory-installed option
• Basic accuracy for 50/60 Hz: Power ±0.07%
• Sampling frequency: 2.5 MHz
• ADC resolution: 16-bit
• Measurement frequency band: DC, 0.1 Hz to 1 MHz
• Maximum input voltage: 1000 V AC, 1500 V DC, ±2000 V peak
• Maximum rated line-to-ground voltage: 600 V AC/1000 V DC CAT III, 1000 V AC/1500 V DC CAT II
• For use with the Hioki PW8001 POWER ANALYZER Mainframe
