SL SERIES
Programmable DC Power Supply
Key Facts
- 109 models
- 1U rack-mount
- 1.5 kW, 2.6 kW, 4 kW, 6 kW, 8 kW power levels
- 5 Vdc to 1500 Vdc output voltage
- 1.5 Adc to 250 Adc output current
- 2-3 week build-time
- UL/CSA listed, CE Mark
- Designed and manufactured in the USA
SL Series Datasheet Download Here
DEFINING A NEW CLASS OF 1U POWER SUPPLIES
Current-Fed Topology, Up to 8 kW, Flexible Options, Made in the USA
The SL Series builds on nearly 40 years of power supply innovation at Magna-Power, designed from the ground up to meet the highly reliable power dense demands of ATE system integrators through Magna-Power's signature current-fed power processing topology. Utilizing state-of-the-art semiconductors and innovative internally designed and manufactured heat sinks, the SL Series offers industry-leading 1U (1.75” height) programmable power levels with models at 1.5 kW, 2.6 kW, 4 kW, 6 kW, and 8 kW, while still maintaining an ambient operating temperature rating up to 50°C.
MODELS
Choose from 109 SL Series Models
There are 109 different models in the SL Series spanning power levels: 1.5 kW, 2.6 kW, 4 kW, 6 kW, 8 kW.
To determine the appropriate model:
- Select the desired Max Voltage (Vdc) from the left-most column.
- Select the desired Max Current (Adc) from the same row that contains your desired Max Voltage.

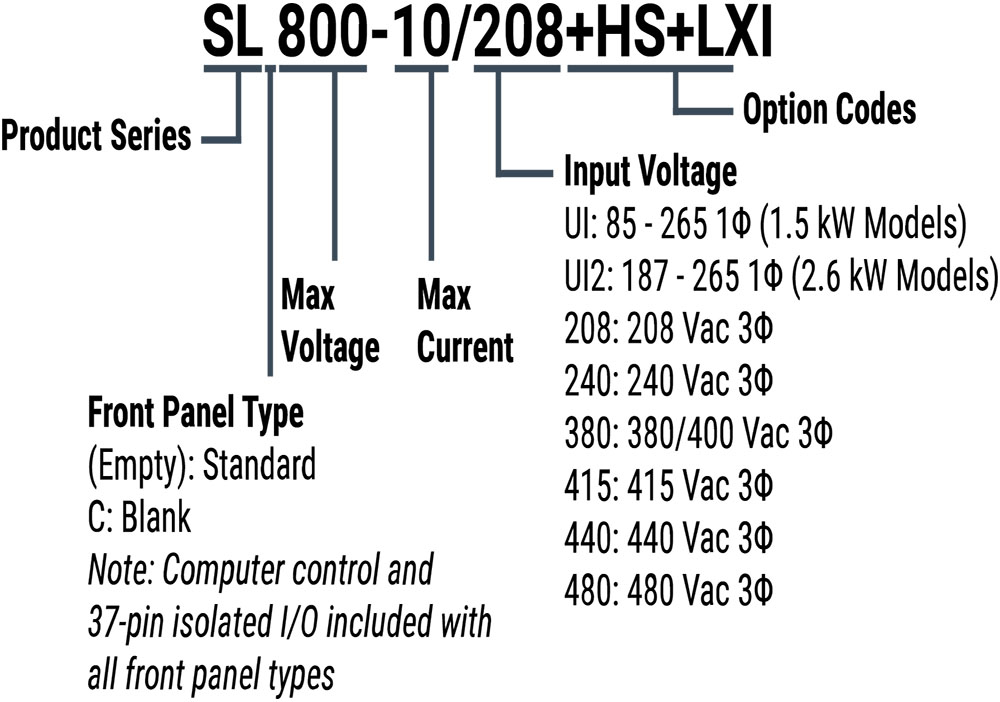

- Construct your model number according to the model ordering guide.
| 1.5 kW | 2.6 kW | 4 kW | 6 kW | 8 kW | |||
| Max Voltage (Vdc) | Max Current (Adc) | Max Current (Adc) | Max Current (Adc) | Max Current (Adc) | Max Current (Adc) | Ripple (mVrms) | Efficiency |
| 5 | 250 | N/A | N/A | N/A | N/A | 50 | 84% |
| 10 | 150 | 250 | N/A | N/A | N/A | 40 | 89% |
| 16 | 93 | 162 | 250 | N/A | N/A | 35 | 89% |
| 20 | 75 | 130 | 200 | 250 | N/A | 40 | 90% |
| 25 | 60 | 104 | 160 | 240 | N/A | 40 | 91% |
| 32 | 46 | 81 | 125 | 186 | 250 | 40 | 91% |
| 40 | 37 | 65 | 100 | 150 | 200 | 40 | 91% |
| 50 | 30 | 52 | 80 | 120 | 160 | 50 | 92% |
| 60 | 25 | 43 | 66 | 100 | 133 | 60 | 93% |
| 80 | 18 | 32 | 50 | 75 | 100 | 60 | 93% |
| 100 | 15 | 26 | 40 | 60 | 80 | 60 | 93% |
| 125 | 12 | 20 | 32 | 48 | 64 | 100 | 93% |
| 160 | 9 | 16 | 25 | 36 | 50 | 120 | 93% |
| 200 | 7.5 | 13 | 20 | 30 | 40 | 125 | 94% |
| 250 | 6 | 10.4 | 16 | 24 | 32 | 130 | 94% |
| 300 | 5 | 8.6 | 13.2 | 20 | 26.4 | 160 | 94% |
| 375 | 4 | 6.9 | 10.4 | 16 | 21.3 | 170 | 94% |
| 400 | 3.7 | 6.5 | 10 | 15 | 20 | 180 | 95% |
| 500 | 3 | 5.2 | 8 | 12 | 16 | 220 | 95% |
| 600 | 2.5 | 4.3 | 6.4 | 10 | 13.3 | 250 | 95% |
| 800 | 1.8 | 3.2 | 5 | 7.5 | 10 | 300 | 95% |
| 1000 | 1.2 | 2 | 3.2 | 4.8 | 6.4 | 375 | 95% |
| 1250 | 1.2 | 2 | 3.2 | 4.8 | 6.4 | 375 | 95% |
| 1500 | 1 | 1.7 | 2.6 | 4 | 5.3 | 400 | 95% |
| AC Input Voltage (VAC | Input Current Per Phase (Aac | Input Current Per Phase (Aac | Input Current Per Phase (Aac | Input Current Per Phase (Aac | Input Current Per Phase (Aac | ||
| UI (85 - 265 Vac, 1Φ) | 21 - 7 | N/A | N/A | N/A | N/A | ||
| UI2 (187 - 265 Vac, 1Φ) | N/A | 16 - 12 | N/A | N/A | N/A | ||
| 208/240 Vac, 3Φ | 6 | 9 | 14 | 21 | 28 | ||
| 380/415 Vac, 3Φ | 4 | 6 | 8 | 12 | 15 | ||
| 440/480 Vac, 3Φ | 3 | 5 | 7 | 10 | 13 |
