TestEquity: Keithley Summer 2020 Expanded Promo

Popular Tektronix & Keithley Test Tools
Oscilloscopes | SMUs | Digital Multimeters | Power Supplies | AFGs

Oscilloscopes

Limited-Time Offer
Get 15% OFF when you purchase two or more Keithley/Tektronix Oscilloscopes, DMMs, Power Supplies, SMU instruments or Arbitrary Function Generators:

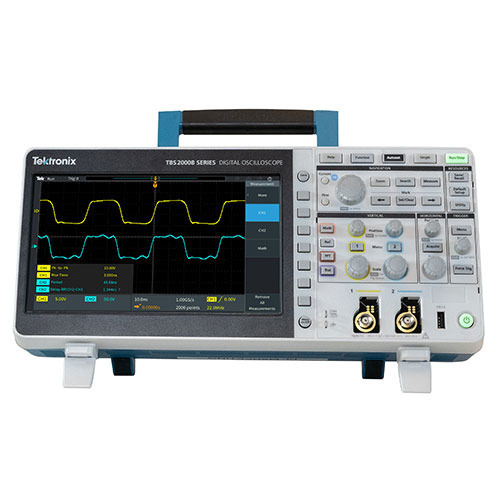

Tektronix TBS2000B Digital Storage Oscilloscopes
With six models to choose from and a range of 70 MHz - 200 MHz with up to a 2 GS/s sample rate, these oscilloscopes are suited for today's leading design applications yet affordable enough for students labs.
To learn more about the TBS2000B Series Click HERE

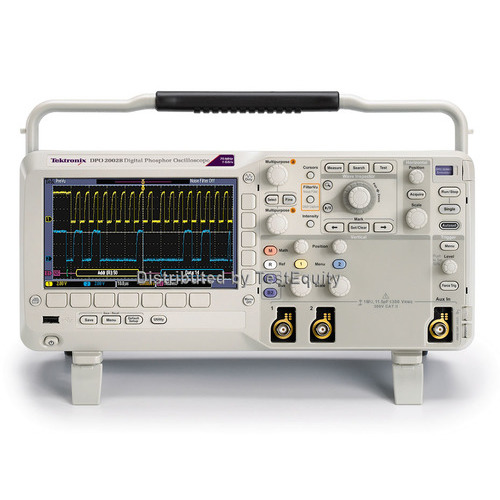

Tektronix MSO / DPO2000B Oscilloscopes
With more that 12 models to choose from, a range of 70 MHz - 200 MHz with up to 16 (optional) digital channels, these powerful but affordable oscilloscopes provide advanced debug features and the ability to analyze both analog and digital signals with the same instrument.
To learn more about the MSO/DPO2000B Series Click HERE

Source Measure Unit Instruments

Limited-Time Offer
Get 15% OFF when you purchase two or more Keithley/Tektronix Oscilloscopes, DMMs, Power Supplies, SMU instruments or Arbitrary Function Generators:

Keithley 2600 SMU Source-Measure Units

Model	Channels	Max Current DC / Pulse	Max Voltage	Measurement Resolution	Power*	Version**
2601B	1	3A / 10A	40V	100fA / 100nV	40.4 W
2602B	2	3A / 10A	40V	100fA / 100nV	40.4 W
2604B	2	3A / 10A	40V	100fA / 100nV	40.4 W	Benchtop
2611B	1	1.5A / 10A	200V	100fA / 100nV	30.3 W
2612B	2	1.5A / 10A	200V	100fA / 100nV	30.3 W
2614B	2	1.5A / 10A	200V	100fA / 100nV	30.3 W	Benchtop
2635B	1	1.5A / 10A	200V	0.1fA / 100nV	30.3 W
2634B	2	1.5A / 10A	200V	1fA / 100nV	30.3 W	Benchtop
2636B	2	1.5A / 10A	200V	0.1fA / 100nV	30.3 W

Keithley 2400 Series Source Measure Units

Model	Touchscreen	Ch.	Max Current Source /Meas. Range	Max Voltage Source /Meas. Range	Meas. Res. (Current/Voltage)	Power
2401	No	1	1A	20V	1pA / 100nV	20 W
2450	Yes	1	1A	200V	10fA / 10nV	20 W
2400	No	1	1A	200V	1pA / 100nV	20 W
2410	No	1	1A	1100V	1pA / 100nV	20 W
2460	Yes	1	7A	100V	1pA / 100nV	100 W
2420	Yes	1	3A	60V	10pA / 100nV	60 W
2440	No	1	5A	40V	10pA / 100nV	50 W
2461	Yes	1	10A	100V	1pA / 100nV	1000 W
2470	Yes	1	1A	1100V	10fA / 100nV	20 W

Keithley SMU 2650 Series High Power SourceMeter

Model	Channels	Max Current Source/Meas. Range	Max Voltage	Measurement Resolution	Power
2651A	1	50A	40V	100fA / 100nV	2000 W
2657A	1	120mA	3000V	1fA / 100nV	180 W

Digital Multimeters

Limited-Time Offer

Get 15% OFF when you purchase two or more Keithley/Tektronix Oscilloscopes, DMMs, Power Supplies, SMU instruments or Arbitrary Function Generators:

Keithley Basic Performance DMM6500

Model	Touch Screen	Measurement Functions	Sensitivity	Digitizer
DMM6500	Yes	15	100nV / 10pA / 1 µOhm	1M sample/s 16bits

Keithley 2000 Series: 6-1/2 Digit Multimeter W/ Scanning

Model	Maximum Resolution	Connectivity
2000-BENCHKIT
2000-MTC-2
2000	6.5	GPIB / RS232

Keithley 2100 Series: 5-1/2 Digit Dual-Display USB Multimeter

Model	Maximum Resolution	Connectivity
2110-120	5.5	USB (TMC)
2110-220	5.5	USB (TMC)
2110-100	5.5	USB (TMC)
2110-240	5.5	USB (TMC)
2110-240-GPIB	5.5	USB (TMC) / GPIB
2110-100-GPIB	5.5	USB (TMC) / GPIB
2110-120-GPIB	5.5	USB (TMC) / GPIB
2110-220-GPIB	5.5	USB (TMC) / GPIB

Keithley 2100 Series: 6-1/2 Digit USB Multimeter

Model	Line Voltage (Vac)	Maximum Resolution	Connectivity
2100/230-240	230-240	6.5 Digits	USB (TMC)
2100/220	220	6.5 Digits	USB (TMC)
2100/100	100	6.5 Digits	USB (TMC)
2100/120	120	6.5 Digits	USB (TMC)

Keithley High Speed/ High Accuracy DMM7510

Model	Maximum Resolution	Connectivity
DMM7510-RACK	7.5	GPIB / USB (TMC) / LAN (LXI)
DMM7510	7.5	GPIB / USB (TMC) / LAN (LXI)

Keithley High Speed/ High Accuracy DMM7512

Model	Channels	Digit Resolution	Interfaces
DMM7512	2	3½ to 7½ digits	USB-TMC, LAN–LXI, TSP-Link

Keithley 2000 Series: 7-1/2 Digit Multimeter W/ Scanning

Model	Description	Maximum Resolution	Connectivity
2010		7.5	GPIB / RS232

Keithley 2001 Series: 7-1/2 Digit Multimeter W/ Scanning

Model	Maximum Resolution	Connectivity
2001	7.5	GPIB
2001/MEM1	7.5	GPIB
2001/MEM2	7.5	GPIB

Keithley 2002 Series: 8-1/2 Digit Multimeter W/ Scanning

Model	Maximum Resolution	Connectivity
2002	8.5	GPIB
2002/MEM1	8.5	GPIB
2002/MEM2	8.5	GPIB

Keithley Multi-Channel Measurement DAQ6510

Model	Channels	Plug-In Switch Modules	Digitizer
DAQ6510	Up to 80	12 options	1 Msample/s
DAQ6510/7700	20	1	1 Msample/s

Keithley Multi-Channel Measurement 2700

Model	Maximum Switching Channels	Other Features	Connectivity	Mainframe Size	No. of Card Slots
2700/7700	Up to 80	Integrated DMM. Includes model 7700, 20-channel differential multiplexer module	GPIB / RS232	1/2 rack, 2U	2
2750	up to 200	Integrated DMM	GPIB / RS232	Full rack, 2U	5

Keithley Multi-Channel Measurement 3706A

Model	Maximum Switching Channels	Other Features	Connectivity	Mainframe Size	No. of Card Slots
3706A-SNFP	up to 576	Switch Only, DMM is excluded and without front panel display and keypad	GPIB /USB (TMC) / LAN (LXI)	Full rack, 2U	6
3706A-S	up to 576	Switch Only, DMM is excluded	GPIB /USB (TMC) / LAN (LXI)	Full rack, 2U	6
3706A-NFP	up to 576	Integrated DMM without front panel display and keypad	GPIB /USB (TMC) / LAN (LXI)	Full rack, 2U	6
3706A	up to 576	Integrated DMM	GPIB /USB (TMC) / LAN (LXI)	Full rack, 2U	6

Power Supplies

Limited-Time Offer

Get 15% OFF when you purchase two or more Keithley/Tektronix Oscilloscopes, DMMs, Power Supplies, SMU instruments or Arbitrary Function Generators:

Keithley PWS4000 DC Power Supply

Model	Description	Number of Outputs	Max Voltage	Max. Current	Connectivity
PWS4205	Power Supply, 20 Volts, 5 Amps	1	20V	5A	USB
PWS4721	Power Supply, 72 Volts, 1.2 Amps	1	72V	1.2A	USB
PWS4323	Power Supply, 32 Volts, 3 Amps	1	32V	3A	USB
PWS4305	Power Supply, 30 Volts, 5 Amps	1	30V	5A	USB
PWS4602	Power Supply, 60 Volts, 2.5 Amps	1	60V	2.5A	USB

Keithley 2200 DC Power Supply

Model	Description	Number of Outputs	Max Voltage	Max. Current	Connectivity
2200-72-1	Power Supply, 72 Volts, 1.2 Amps	1	72V	1.2A	USB, GPIB
2200-32-3	Power Supply, 32 Volts, 3 Amps	1	32V	3A	USB, GPIB
2200-20-5	Power Supply, 20 Volts, 5 Amps	1	20V	5A	USB, GPIB
2200-60-2	Power Supply, 60 Volts, 2.5 Amps	1	60V	2.5A	USB, GPIB
2200-30-5	Power Supply, 30 Volts, 5 Amps	1	30V	5A	USB, GPIB

Keithley 2220/2230/2231 Series

Model	Description	Number of Outputs	Max Voltage	Max. Current	Connectivity
2231A-30-3	Manual Triple Channel DC PS	3	30V	3A	USB
2220-30-1	Dual Channel DC PS	2	30V	1.5A	USB
2220G-30-1	Dual Channel DC PS w GPIB	2	30V	1.5A	USB, GPIB
2230-30-1	Programmable Triple Channel DC Power Supply	3	30V	5A	USB
2230G-30-1	Programmable Triple Channel DC PS w GPIB	3	30V	5A	USB, GPIB

Keithley 2260B Series

Model	Description	Number of Outputs	Max Voltage	Max. Current	Connectivity
2260B-80-13	Programmable DC PS, 360W	1	80V	13.5A	USB, LAN, GPIB, Analog
2260B-30-36	Programmable DC PS, 360W	1	30V	36A	USB, LAN, GPIB, Analog
2260B-250-4	Programmable DC PS, 360W	1	250V	4.5A	USB, LAN, GPIB optional
2260B-800-1	Programmable DC PS, 360W	1	800V	1.44A	USB/LAN; GPIB optional
2260B-80-27	Programmable DC PS, 720W	1	80V	27A	USB, LAN, GPIB, Analog
2260B-30-72	Programmable DC PS, 720W	1	30V	72A	USB, LAN, GPIB, Analog
2260B-30-108	Programmable DC PS, 1080W	1	30V	108A	USB/LAN; GPIB optional
2260B-80-40	Programmable DC PS, 1080W	1	80V	40.5A	USB/LAN; GPIB optional
2260B-250-9	Programmable DC PS, 720W	-	250V	9A	USB/LAN; GPIB optional
2260B-800-2	Programmable DC PS, 720W	1	800V	2.88A	USB/LAN; GPIB optional
2260B-250-13	Programmable DC PS, 1080W	1	250V	13.5A	USB/LAN; GPIB optional
2260B-800-4	Programmable DC PS, 1080W	1	800V	4.32A	USB/LAN; GPIB optional

Keithley 2280S Series

Model	Description	Number of Outputs	Max Voltage	Max. Current	Connectivity
2280S-32-6	Prog Single Ch DC PS, 192W	1	32V	6A	USB, GPIB, LAN
2280S-60-3	Prog Single Ch DC PS, 192W	1	60V	3.2A	USB, GPIB, LAN

Keithley Series 2281S Battery Simulator

Model	Description	Number of Outputs	Max Voltage	Max. Current
2281S-20-6	DC PS/battery simulator, 120W	1	20V	6A

Arbitrary Function Generators

Limited-Time Offer

Get 15% OFF when you purchase two or more Keithley/Tektronix Oscilloscopes, DMMs, Power Supplies, SMU instruments or Arbitrary Function Generators:

Keithley AFG1000 Arbitrary/Function Generators

Model	Analog Bandwidth	Analog Channels	Output Frequency	Record Length	Sample Rate	Vertical Resolution
AFG1022	25 MHz	2	1 uHz to 20 MHz	8k points	125 MS/s	14-bit
AFG1062	60 MHz	2	1 uHz to 60 MHz	1M points	300 MS/s	14-bit

Keithley AFG2000 Arbitrary/Function Generator

Model	Analog Channels	Output Frequency	Record Length	Sample Rate	Vertical Resolution
AFG2021	1	20 MHz	128k points	250 MS/s	14-bit

Keithley AFG3000C Arbitrary/Function Generators

Model	Analog Channels	Output Frequency	Record Length	Sample Rate	Vertical Resolution
AFG3021C	1	25 MHz	128k points	2 - 128k: 250MS/s	14-bits
AFG3051C	1	50 MHz	128k points	2 - 16k: 1 GS/s; >16k - 128k: 250 MS/s	14-bits
AFG3022C	2	25 MHz	128k points	2 - 128k: 250MS/s	14-bits
AFG3052C	2	50 MHz	128k points	2 - 16k: 1 GS/s; >16k - 128k: 250 MS/s	14-bits
AFG3011C	1	10 MHz	128k points	2 - 128k: 250MS/s	14-bits
AFG3101C	1	100 MHz	128k points	2 - 16k: 1 GS/s; >16k - 128k: 250 MS/s	14-bits
AFG3151C	1	150 MHz	128k points	2 - 16k: 1 GS/s; >16k - 128k: 250 MS/s	14-bits
AFG3102C	2	100 MHz	128k points	2 - 16k: 1 GS/s; >16k - 128k: 250 MS/s	14-bits
AFG3101C	2	150 MHz	128k points	2 - 16k: 1 GS/s; >16k - 128k: 250 MS/s	14-bits

Keithley AFG31000 Arbitrary/Function Generators

Model	Analog Channels	Output Frequency	Record Length	Sample Rate	Vertical Resolution
AFG31021	1	25 MHz	16 MSa/ch	250 MS/s	14-bits
AFG31051	1	50 MHz	16 MSa/ch	500 MS/s	14-bits
AFG31022	2	25 MHz	16 MSa/ch	250 MS/s	14-bits
AFG31052	2	50 MHz	16 MSa/ch	500 MS/s	14-bits
AFG31101	1	100 MHz	16 MSa/ch	1 GS/s	14-bits
AFG31151	1	150 MHz	16 MSa/ch	2 GS/s	14-bits
AFG31102	2	100 MHz	16 MSa/ch	1 GS/s	14-bits
AFG31152	2	150 MHz	16 MSa/ch	2 GS/s	14-bits
AFG31251	1	250 MHz	16 MSa/ch	2 GS/s	14-bits
AFG31252	2	250 MHz	16 MSa/ch	2 GS/s	14-bits

Complete this form for a quote

Terms & Conditions:

Offer runs April 1, 2020 - December 31st, 2020
Offer applies to new products sales only, including GSA. Encore, demo, or used sales do not qualify
Customer's purchase order must be placed and accepted between April 1, 2020 -December 31st, 2020. Open quotes with this program discount after the end date will not qualify.
Offer can be combined with the education discount, including CFI.
Offer cannot be combined with any other programs include Registration or other promotions than otherwise noted.
Tektronix reserves the right to change or cancel this program at any time.
